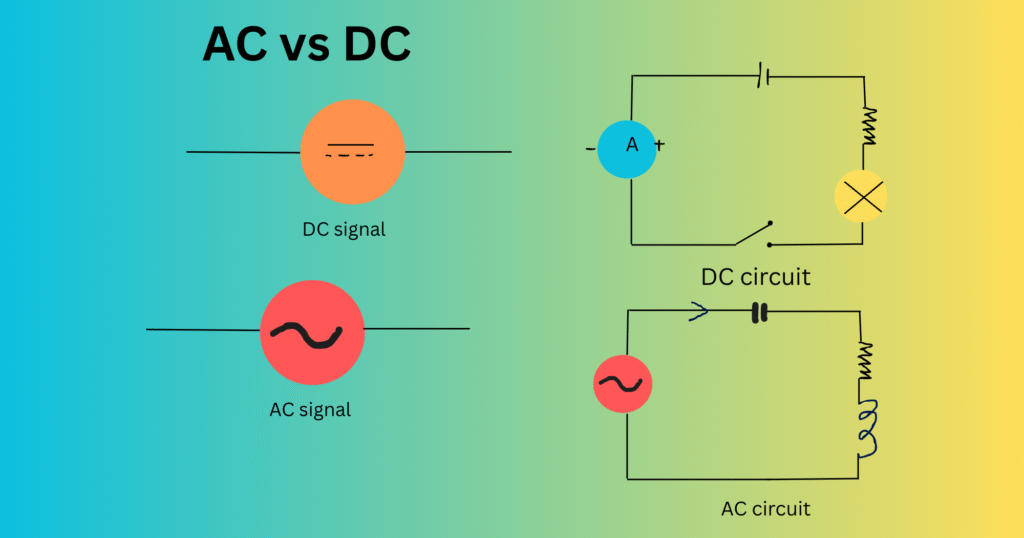

Alternating Current (AC) vs. Direct Current (DC): Comparing Flow Type, Resistance and Impedance, Transmission, Conversion and Applications

Definitions of AC and DC

Alternating Current and Direct Current are the configurations to provide direction to the current flow. Alternating Current (AC) vs. Direct Current (DC) comparison shows a huge difference between the two ways of current flow. DC is taken as the setup for providing a uniform, steady direction to the current while AC keeps on oscillating like a wave and has a periodic motion, generating a waveform. Both have their own unique features and importances, making them suitable in various realms of power production and distribution.

DC has a simple nature, providing a stable value and hence is the common choice for electronics requiring a stable power source. AC on the other hand has a standard, complex form of power transmission. It is chosen for the energy supply over long distances because it can be easily stepped up or down in voltage using transformers. Smartphones and other gadgets etc. show a stable DC output, while other household appliances, power grids rely on AC. Further we will look for the basic comparison of these two ways of transmission.

How do AC and DC Flow?

The flow of electricity means the flow of electric charges or electrons inside a conductor. This is the main feature that distinguishes AC and DC. As mentioned above, in a DC, steady flow of current is expected and genuinely the electrons flow in one uniform direction, without any ups and downs. This is primarily because the power supplied or the voltage given in DC is constant. Thus, the electrons are drifted forward, maintaining a discipline of flow. Hence, every system and device that requires constant voltage uses this configuration.

Conversely, in ACs, there is a periodic fluctuation in the direction of voltage and current. Thus, the direction cannot be stable. Electrons are pushed and pulled back and forth which creates a sinusoidal waveform resembling a wave. The voltage and current keep fluctuating between positive and negative values. Thus, it is preferred in the areas where the voltage or current direction needs to be varied in the connection. The conversion from higher voltage to lower voltage and vice-versa is effectively carried out by AC through the transformers.

AC Impedance vs DC Resistance

Resistance and impedance both are the current blockers. However, they are different quantities.

Resistance (R) is a normal component used in Direct Current (DC) circuits. It provides a barrier to the current flow and is measured in ohms (Ω). When electrons and atoms in a conductor come into contact, electrons lose some amount of energy in the form of heat which is called the resistance. In a DC resistance is simple to calculate and is given by Ohm’s Law (V = I × R). The resistance is also constant in DC.

Since the nature of flow of voltage and current is complex in AC, the blockage in the current also becomes complex. Resistance alone becomes unable to fully describe the blockage. Hence a unique term called impedance (Z) is introduced which combines resistance (R) with reactance (X). Reactance comes as a complex part of impedance caused by inductors (which oppose changes in current) and capacitors (which oppose changes in voltage). Impedance is also measured in ohms which includes both magnitude and phase angle.

Z = R + jX [Equation 1]

In simple terms, resistance is a real term that shows a real blockage to the current while impedance contains both real and imaginary parts, that accounts for resistance plus the frequency related effects.

HVDC vs HVAC Transmission

In large ranges of distance, the need of electricity can be fulfilled by two ways: either High-Voltage Direct Current (HVDC) or High-Voltage Alternating Current (HVAC) systems. Both have unique modes of construction and transmission with their own advantages and disadvantages.

HVAC transmission is the traditional way of transmitting power among remote and urban sites. All household to commercial appliances depend on HVAC. AC voltage can be stepped up or down using transformers and can cover a moderate range of distance with safety. They are also economically attainable for shorter distances and easily set up in power grids. Although the power loss (reactive power) is suffered a lot as AC power keeps fluctuating. Thus, there is an unwanted waste of energy in the cables and components. The power loss is even greater over very long distances.

As the DC is uniform and stable, HVDC transmission is more acceptable for the connection over distant sources like offshore wind turbines, submarines, remote solar plants, and even international power grids. These systems give the least reactive power loss and can be easily obtained with fewer conductors. Hence, the long range power requirements with relatively no loss can be fulfilled efficiently by HVDC. However, the initial set up is costly and specific with special converter stations to convert AC to DC.

Lastly, HVAC can be used for simpler and short distance transmissions but HVDC is a standard and expensive system providing efficient and stable transmission for very distant places with high-capacity transmission.

Conversion Technologies: Rectifiers (AC→DC) and Inverters (DC→AC)

For the effective power generation and transmission, the inter-conversion of both forms is vital. Maximum electrical systems and devices rely on combined functioning of AC and DC. Thus, technologies are also built with the facility of converting one configuration to another. Two well-known such technologies are the rectifiers and inverters.

A rectifier gains Alternating Current (AC) and emits Direct Current (DC). For the conversion of periodic AC to uniform DC, diodes are used. They pass the current through only one direction of flow. Most of the electronic devices often need stable voltage supply. Therefore, it is more common among portable devices like smartphones, battery chargers, laptops etc. The types of rectifiers used are half-wave rectifiers, full-wave rectifiers, and bridge rectifiers. They fulfill various kinds of power requirements.

An inverter is the reverse of rectifier that takes in DC and gives out AC. Inverters take stable DC voltage from the power storing devices like, solar panels etc. and create a pulsating alternating current. This current is then used for powering AC appliances or supplying electricity into the grid. Advanced inverters are used in the advanced systems like solar energy systems, electric vehicles, and uninterruptible power supplies (UPS), that produce pure sine wave as like the grids.

Devices like AC and DC have fulfilled the requirement of both types of current in a system and hence make the energy transmission smoother. They have promoted the sustainable energy by the use of solar panels, EVs and wind energy. Thus, these converters have become fundamental in electrical energy production and tranmission.

Applications of AC

Alternating Current (AC) is the most familiar form of electricity used for power generation as our cables and power supplies at home are generally ACs. The transmission, and distribution around the world is more common because of its ability to easily change voltage levels. The transformers make it possible for passing electricityto the moderately large distances. The power generated via power plants is distributed with AC. To minimize the energy loss through fluctuations,  it is supplied with high voltages (HVAC) ) and to minimize the possible risks, step down voltage is used in household or commercial sectors.

AC is common in applications like lighting, heating, cooling systems, and everyday appliances like televisions, washing machines, and refrigerators. In the Industries it is used to run large electric motors, pumps, conveyors, and other heavy machinery. AC is also used in public areas like streets, railways etc. for the liighting purpose. Large-scale HVAC is employed in the air conditioning systems and heating systems. The huge network servers and business sites are also supported by AC.

Most of the entertainment zones use AC powered lighting and sound systems like in theatres, stadiums, Discos etc. Its simpler structure and efficient nature make AC the widely chosen configuration of power supply in the national grids, smart grids, and renewable energy connection.

Applications of DC

The demand of DC is growing everyday as the technologies are advancing alot. Our most familiar and friendly gadgets are driven by the DC. Therefore, every powering systems and renewable energy systems employ DC recently. As mentioned above, the key reason for using DC is the stable and uniform power supply. Thus, the power transmission rate with approximately no energy loss is suppoerted by the DC.

One of the most common uses of DC is in batteries for charging smartphones, laptops, cameras, and electric vehicles (EVs). Solar panels and fuel cells alsowork on DC. In these devices, DC is either stored in batteries or converted to AC for grid distribution. DC is essential for digital electronics, microprocessors, and circuits. Basically, all the electronic components like transistors and ICs etc, operate on low-voltage DC. It is also used in telecommunications, wind turbine rotators, medical devices, robotics, and sensors, where high and precise energy distribution is necessary.

High-Voltage Direct Current (HVDC) transmission is gaining popularity for long-distance because of its high-efficiency in power transfer. Especially, it is employed in connecting offshore wind farms and remote solar plants to the grid. As the world is facing scarcity of non-renewable energy sources, the demand of sustainable and clean energy is increasing. Thus, DC is being widely employed for developing in the recent technologies.

Measuring AC and DC

The measurement of electrical quantities is very importast in order to design a efficient circuit with no risks. Hence, different measuring techniques are used either in case of AC or a DC. Certain instruments like multimeters and oscilloscopes are popular ins measuring DC and AC respectively. The measuring devices are uniquely built up because of the configuration variations in both cases.

For measuring Direct Current (DC), multimeters are frequently used as they can easily display the value of voltage, current, and resistance. The reading is straightforward because these quantities are stable. Thus, the testing of the power in a connection is easier in DC. Other measuing tools used are clamp meters and shunts. They all provide precise readings for stable signals.

For measuring Alternating Current (AC), the devices like oscilloscopes and RMS meters are especially designed. The AC quantities are never uniform and steady, thus, the measurement is complex. The instruments measure the RMS (Root Mean Square) value, which represents the effective voltage or current. Oscilloscopes display the waveforms, frequency, and phase relationships in AC signals. Specialized tools like true RMS meters ensure accuracy even when non-sinusoidal waveforms are obtained.

Both AC and DC measurements are crucial in power generation, electronics, renewable energy systems, and household wiring. Modern digital meters often feature settings for both current types, simplifying testing for engineers, electricians, and technicians.

Differences Table of AC vs DC

Conclusion

AC and DC in combination, rule the modern electronics. AC leads power generation and transmission due to its efficiency and flexibility while DC is essential for small electronic components and charge storage. Power generation of the whole world depends on these two configurations. Frem powering smartphones to submarines, all rely on AC, DC and their inter-conversion. Their collaboration can also help in attaining green energy that powers the world.  Advances in electronics have filled the gap between traditional AC systems and modern DC devices. Understanding their concepts and set ups allow engineers, technicians, and common users to make intelligent choices of technology, keeping safety as a primary requirement.
