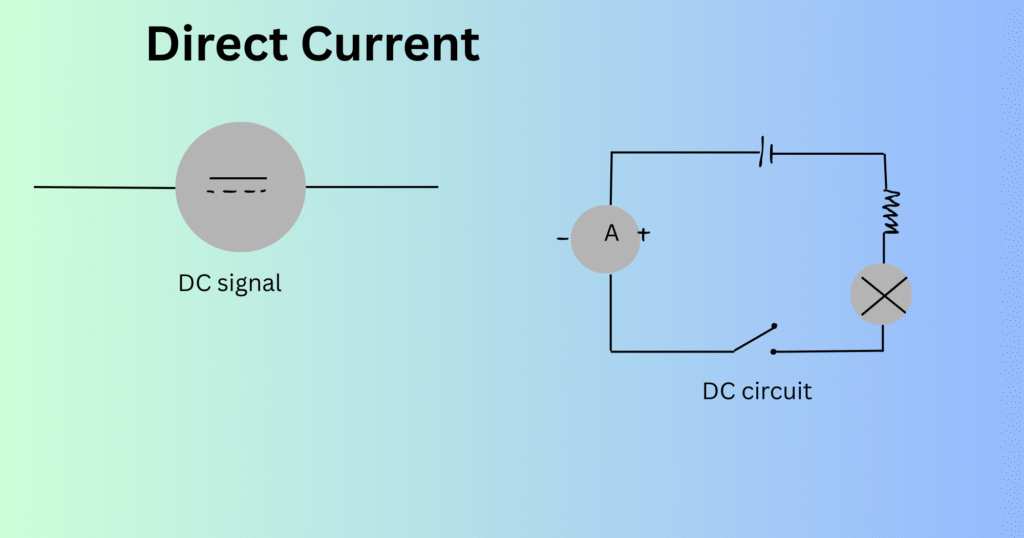

Definition of Direct Current (DC)
In electricity, current can be made to flow in two ways: either uniformly or periodically back and forth. Direct current (DC) is a type of electric current where the electric charges always move in a uniform direction, thus producing steady current. In DC electrons are allowed to travel from the negative side of a power source to the positive side, without changing direction. While in Alternating current, the electric charges pass oscillating and fluctuating like a wave. In this article we only discuss the basics of Direct current.
To visualize DC in a simple way, let’s consider the electrons as water flowing through a pipe. Just like the water always flowing in one direction throughout the pipe, electricity flows in the same manner inside a wire. Thus, DC provides stable power and is easier to use in many devices than AC.
A power source like battery, solar panel, fuel cell etc. is used to generate DC which naturally provides one steady direction to the electricity. It is commonly used with our familiar gadgets like smartphones, laptops, LED lights etc. These devices operate under a uniform supply of the energy and hence a steady power must be given steadily.
Direct current is easily understood and is of simple nature. Therefore, it is ideal for small electronic devices and also those systems requiring low-voltage. It is also widely employed in renewable energy applications. Thus, we are influenced by DC to perform our daily activities.
Common DC Sources: Batteries, Solar Cells, Fuel Cells, Rectifiers
There are several common sources generating DC power, each having unique features. Some of them are listed below:
- Batteries
Batteries are one of the most common, cheaper and portable sources of DC. They store chemical energy and convert it into electrical energy when needed. Batteries are of several types like: alkaline, lithium-ion, lead-acid, and nickel-cadmium. They are rechargeable which makes them more preferable in common devices like mobile devices, vehicles, and backup systems.
- Solar Cells
Solar cells are called photovoltaic (PV) cells as they convert the direct sunlight to electricity. Semiconductor materials like silicon can generate power when sunlight encounters their surface. As explained by Einstein’s photoelectric effect, electrons are released from the metal surface and conduct electricity. Solar panels are the combination of multiple solar cells. As they are a clean source of energy and also renewable, they are widely used in household purposes, businesses, and solar-powered devices. - Fuel Cells
Fuel cells generate DC electricity by a chemical reaction between hydrogen and oxygen, without combustion. They are very efficient and produce only water and heat as by-products, which makes them sustainable. Fuel cells are used in electric vehicles, spacecraft, and backup power systems. They offer a sustainable, eco-friendly and reliable energy to the systems. - Rectifiers
Rectifiers take in alternating current (AC) and give direct current (DC). Since most home electricity is AC but our daily gadgets like computers and chargers need DC, rectifiers are very essential in the power supplies. Rectifiers can be complex or simple diode-based circuits, whose use is done as per the requirement.
In addition, all these sources have their own use and importance in the circuits. Without them, the DC is impossible. In combination, they make DC energy practical, efficient and renewable.
DC Circuit Basics: Voltage, Current and Resistance (Ohm’s Law)
Voltage (V) conducts electric charges throughout the conductor and is the potential difference between its two terminals. Its SI unit is volts (V).
Current (I) means electric charge movement throughout a circuit. Its SI unit is amperes (A). In a DC circuit, current flows from the negative terminal to the positive terminal of the power supply.
Resistance (R) is the blockade in the flow of current which is measured in ohms (Ω). Low resistance materials like copper block less amount of current and hence allows electricity to pass easily. On the contrary, rubber has high resistance which blocks current in large amounts.
Ohm’s Law gives a direct relationship between these terminologies as:
V=I×R [Equation 1]
Its theory is stated as: the current flowing in a DC circuit is directly proportional to the potential given and inversely proportional to the resistance. Using this formula, we can calculate the value of that one component, if the value of the other two is given.
Series and Parallel DC Circuits: Rules and Examples
In DC circuits, electrical components like resistors, bulbs, or batteries can be connected in two configurations: series or parallel. Each of them show a different impact on the voltage, current, and resistance.
In a series circuit, all the components have the same end-to-end connection and hence have a single path of the current flow. The same current passes through all components and hence current remains constant. However, the total voltage drop among the individual components is added. The total resistance is:
Rtotal = R1 + R2 + R3 + …
In a parallel circuit, the positive ends are connected at one point and the negative ends are connected on the other end. This allows current to flow along multiple paths and hence current gets divided along each component while voltage remains the same. Now, the total resistance will be:
1/Rtotal = 1/R1 + 1/R/2 + 1/R3 + …
DC Power Calculations: P = V × I and Efficiency
In direct current (DC) circuits, power (P) is calculated as the product of voltage and current. It indicates the rate at which electrical energy is supplied or consumed by a device.
If V is the voltage in volts, and I is the current in amperes then power P is given by:
P = V × I [Equation 2]
Power in SI units is measured in watt. Equation 2 shows that power is directly proportional to both voltage and the current. Thus, the increase in either of them can give more power. For example, if a circuit with 15 volts source gives the current of 2 amperes, the power generated by the circuit will be 30 watts.
Efficiency is the percentage measurement of how smoothly a device converts electrical energy (input power) into useful work (output power).
Efficiency = [Output Power / Input Power] × 100 %
Obtaining 100 % efficiency means our device converts whole input into output. However, the output power is always smaller than the input power as some of the input power gets consumed by the components used in the circuit.
Evaluating power and efficiency is necessary for developing safe and reliable electronics also giving renewable energy. It also ensures that the devices function properly without overheating or overloading.
DC Waveforms and Ripple: Filtering and Regulation
A little amount of input is lost even in DCs. More often, when rectifiers are used to convert AC to DC this fluctuation is observed. This small irregularity in the output is known as ripple. Ripples can be detected in super sensitive devices or systems and hence reduce the overall performance of the device. How much ripple can be obtained is determined by the type of load or the rectifier accompanied to the system. The pulsating DC waveform comes out from a rectifier. So, to provide smooth output, control noise and overheating in the circuit, these ripples must be sorted out.
The filtering process eliminates the ripples from the circuit. Capacitors and inductors are frequently used as filters because capacitors store and release charges when required, which fulfil the voltage gap in the circuit whereas, inductors oppose the fluctuations in the current. They are combined with LC or RC filter networks to produce efficient and smooth DC output.
Regulation adds quality in the DC output. Linear regulators or Low Dropout Regulators (LDOs), keep the output voltage constant even if the input is fluctuating. Buck or boost converters are also used to get higher efficiency.
A perfectly regulated DC output is required for many appliances like computers, communication systems, and medical equipment. For example, a charger converts AC to DC with the help of a rectifier and uses filters to reduce ripple. Then regulation is applied to give a steady voltage to the battery.
DC Power Supplies and Converters: Rectifiers, Buck/Boost, LDOs
DC power supplies and converters are used in many connections to offer a stable and reliable current to the devices. The input power is often provided from an AC source and converted into the DC voltage and current for the circuit.
Rectifiers are key components that take AC supply and give out a DC. A rectifier uses diodes which provide one direction to the current flow but the resulting DC is a pulsating DC. Thus the output is then filtered using capacitors or inductors. Filters smoothens the voltage and cuts out the ripples. Rectifiers are used in everything where the AC input needs to be converted to DC output as like chargers to large industrial systems.
Buck and Boost Converters are the switching regulators. Buck converter is used to step voltage down as it lowers the input voltage. A boost converter is the reverse of the Buck converter. These converters increase the efficiency of a device and are widely preferred in battery-powered devices and sustainable energy systems.
Low Dropout Regulators (LDOs) give very fine voltage regulation maintaining a small minimal potential variation between input and output. They are simple to construct, affordable and result in low-noise and hence suitable for applications like audio devices.
High-Voltage Direct Current (HVDC) Transmission: When and Why
Generally, AC is chosen for HVDC for larger distances, but in specific situations where high power is to be supplied over 100s and 1000s of kilometers, High-Voltage Direct Current (HVDC) is more efficient to use. The main factor for choosing HVDC over AC is that it provides minimum loss in energy during the transmission. In AC transmission, the risk of power reduction is greater as the reactive power, and the direction keeps changing uniformly. DC eliminates this issue and provides higher output.
HVDC can rely on fewer conductors and can carry more power over thinner cables. This adds their preference in long distances with reduced cost. HVDC can also easily link asynchronous networks. Thus, it is ideal for connecting power grids with different frequencies or systems. This feature makes them suitable for international power sharing, offshore turbines, and remote renewable energy sources like dams that generate electricity. Furthermore, HVDC is preferred for underwater and underground lines.
To sum up, HVDC has a higher efficiency with its long range of effectiveness in transmission. It is an important technology for developing sustainable energy projects and for distributing eco-friendly, stable electricity also by lowering costs.
DC Motors and Actuators: Principles and Applications
DC motors and actuators are the devices that provide electrical energy a movement. This makes them effective in various modern technologies.
A DC motor also relies and functions under electromagnetic induction. A DC supplied to its wings creates a magnetic field. This produces torque which makes the motor shaft rotate. By controlling the voltage or current supplied, the speed and direction of rotation can be adjusted smoothly.
Actuators produce controlled linear or rotary movement rather than continuous rotation. Many actuators are based on DC motors, to convert rotation into movement.
DC motors and actuators are widely used because their construction is simple, reliable, and easy to control. They are found in electric vehicles, robotics, household appliances, toys, industrial machines, and medical devices.
Measuring DC: Multimeters, Shunts and Data Loggers
Accurate measurement of current and voltage is very important either in DC or in AC configurations. For testing devices and applications and also for ensuring safety, measuring devices are required. Digital or analog multimeters are generally used for the measurement of DC voltage, current or resistance. It has an internal shunt resistor that converts current into a proportional voltage and is displayed in the meter, which is connected in series. External shunts are embedded in the circuits to measure high-current. The voltage drop across the shunt can also be measured by it. This helps us to calculate the current by using Ohm’s law. The measurement range of a multimeter varies according to the components used in its construction. Very sensitive multimeters are constructed by providing low resistance.
For the past few years, DC data loggers have also been employed for continuous monitoring and analysing the current/voltage measurement. These devices keep records on the basis of time. Thus, a certain time-period data is obtained that helps in the performance analysis or fault detection in the measurement. Data loggers allow those analyses without the need for human measurement by integrating with computers or cloud-based services. Shunts and data recorders can provide high-current measurement over a longer period of time, while multimeters offer quick readings. These devices guarantee the accuracy and safety either in commercial, research-based systems or in household appliances.
Safety in DC Systems: Shock, Arc Flash and Safe Work Practices
Although being viewed as less dangerous than high-voltage AC, working with electricity is never safe. Electric shock is a common risk in AC or DC. The shock even in low-voltage DC can result in cardiac arrest, burns, or muscle contractions. It is more difficult to release live conductors when DC is present because it tends to create constant muscle tension. Thus, the safety measures like wearing protective gloves, using insulated equipment etc. must be prioritized first before conducting any work. Moreover, the circuit must be open before touching it.
Arc flash is another serious danger in DC systems. High-current DC can produce powerful arcs during a short circuit. DC arcs are more difficult to distinguish than in AC. Thus, safety equipment like circuit breakers and fuses are essential. Arc flashes can be controlled by maintaining switchgears. Also, make sure that your protective device can reduce the risk properly.
Safe work practices are essential to reduce the probable risk. Lockout/tagout procedures must be followed to be sure that the circuit is disconnected while working. An employee must make proper use of Insulated foot wears, mats or barriers and also maintain a possible safe distance from live parts. Inflammable objects must be removed from the surroundings, while working in such sites. Wearing personal protective equipment (PPE), flame-resistant wears, safety goggles, and insulated gloves, is mandatory when working near powered systems. Furthermore, appropriate labeling of the circuit, knowing system designs, and providing necessary training to the workers in case of emergency response are pivotal.
Frequent checks, regular maintenance, and sticking to safety regulations such as the IEEE guidelines will help to improve safety. Moreover, awareness to the system and professional working practices ensures safety of employees as well as the system.
DC in Electronics and Renewable Energy Systems
Direct current (DC) has become a backbone of modern electronics and electrical energy supplies. Our daily devices like smartphones, computers, etc. rely on DC, even being powered from AC mains. Power supplies, voltage regulators, and DC-DC converters provide constant DC voltages that are suitable for sensitive components. Most of the electronic devices prefer DC to AC as they provide a stable power and hence the operation becomes efficient. The electrical components like semiconductors, batteries etc. function smoothly with the steady power supply.
In renewable energy systems like Solar panels, Photovoltaic cells, etc. DC does significant work. These devices generate DC electricity, which is either stored in batteries or converted to AC using inverters. The electricity is later used in power grids. . The electricity generation through wind also functions with DC. Thus produced energy is stored and transmitted with the help of DC. DC microgrids are becoming more common in remote and rural applications because of their ability to directly connect with the batteries, LED lighting, and DC motors. Many complex conversions are not required with the DC supply, which makes the construction easier. Overall, direct current (DC) is essential in electronics and sustainable energy systems because it provides reliable, efficient, and affordable energy systems.
DC Microgrids and Electric Vehicles
Microgrids transmit DC power from renewable sources, energy storage and DC loads. DC microgrids have fewer AC-DC conversions. This increases the efficiency of the system and also reduces losses from the systems. They stand perfect for household and commercial appliances like the solar panels, batteries, and LED lights. DC microgrids also offer greater regulation of voltage and have an easier control over sensitive electronic devices. These all qualities make them attractive in modern electronics.
The eco-friendly electric vehicles (EVs) also function on direct current (DC) electricity. The DC-DC converters are employed for the vehicle propulsion by storing the energy and powering the vehicle. Lithium-ion batteries are used in vehicles to store direct current (DC) energy, which is used to power the motor of a vehicle. Fast-charging stations supply high-voltage DC directly to EV batteries. The DC-AC conversion is totally avoided to reduce the energy loss and hence increases the charging time.
The combination of DC microgrids and electric vehicles results in sustainable and efficient energy. These technologies being simple and highly efficient, improve overall efficiency, lower costs, and promote cleaner transportation and localized energy distribution.
Troubleshooting DC Circuits: Common Faults and Diagnostics
Common issues in the systems may be broken circuits, short circuits, damage in the components or configuration errors, whose inspection is correction is known as troubleshooting. Voltage drops, unwanted readings, unexpected current flows, overheating or no working of the system are some common problems observed frequently.
The diagnostic process can be started with the proper visual checking for loose wires or any damage in the components. Multimeters are required for continuous tracking of the voltage, current, and resistance while trying to identify trouble spots. Frequent testing can help in discovering the breakage, leakage or any short problems. For complicated circuits, oscilloscopes or data loggers may help to identify the stability problems over time. The use of techniques, like testing components independently, and maintaining regulated power supply can further aid in fault determination. Noting down the problems and the remedies applied can help in the future issues also helping to imply safety measures.
Standards and Symbols for DC in Schematics

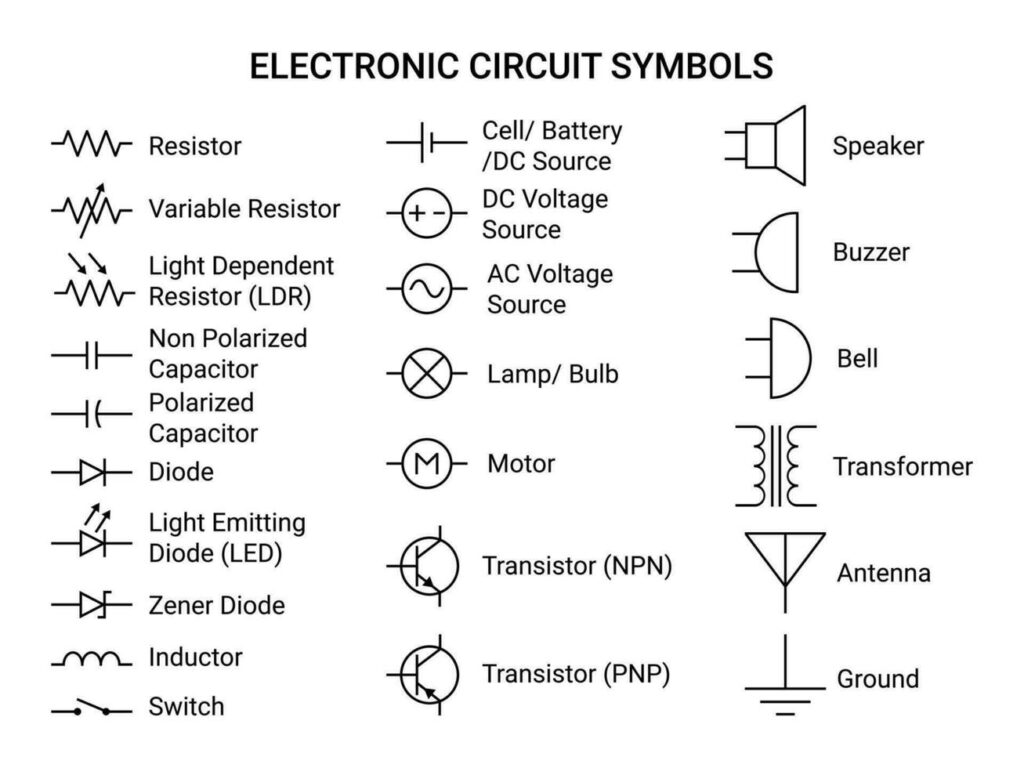

In electronics, direct current (DC) circuits are represented with standard symbols to clearly understand the code of electricity universally. DC is often denoted by a straight line with three short dashes beneath the straight line (). This sign is seen near power sources like batteries or DC power supplies, to demonstrate the direction of current and voltage type.
Batteries are typically indicated by a long and a short parallel line, where the long line denotes the positive terminal and the short line denotes negative terminal. Components like resistors, capacitors, diodes, and transistors also have their unique standard symbols. However, the most important thing is to notice their polarity in DC circuits. The reverse power supplied can also damage some sensitive components. Some important symbols are:
Source: vecteezy.com
The standards for the symbols are provided by the organizations like IEC (International Electrotechnical Commission), IEEE, and ANSI. They also ensure the uniformity of these symbols across documentation and engineering designs. Correct use of symbols also enhances communication between manufacturers, technicians, and engineers from different linguistic backgrounds. Understanding these conventions is essential for designing, analyzing, and safely working with DC circuits.
Conclusion
Being portable, efficient and its easy construction nature has made it a good choice for power distribution. Every day gadgets to power generating and distributing systems rely on DC contemporarily. Smartphones DC supplies. It is also helping to grow the sustainable energy transmission system. Technologies are evolving for even smoother energy systems. Thus, we can conclude that DC is the pillar of modern electronics.
However, hands on with electricity is never that easy. A risk of shock, arc flash, burn is always lying at one side. So, working with proper preventive measures are always suggested. Professionals and technicians are required for any tasks. To sum up, DC is the demand of today’s electronics which can be effective if gone through right hands.
