Electromagnetism is applied to a wide range of daily circumstances to advanced technologies in science. Lenz’s Law is a primary idea in the realm of electromagnetic induction. It provides information about electromagnetic forces. This article goes briefly through Lenz’s Law including its definition, connection to electromagnetic induction, mathematical expressions, practical applications, its ecological role, scientific research, common misconceptions, and concluding remarks.
What Is Lenz’s Law?
The path of a current generated in a conductor when it interacts with a varying magnetic field is described by Lenz’s Law. It is an essential part of electromagnetism. The concept was developed in 1834 by Heinrich Lenz, a German physicist, which proved that the flow of an induced electromotive force (EMF) and the current thus created in a closed circuit remain in such a way that they block the change in magnetic flux which caused them.”
In other words, when the magnetic field surrounding a conductor changes, a current is induced that produces a magnetic field that resists the first magnetic flux input. This law is an example of energy conservation, which shows that energy gets transformed rather than created or destroyed.
How Does Lenz’s Law Relate to Electromagnetic Induction?
The approach by which a changing magnetic field throughout an enclosed circuit causes an electromotive force (EMF) producing an electric current in the conductor is known as electromagnetic induction. The directions of the electromotive force and the magnetic field are given by Lenz’s Law, which gives the produced current’s direction.
Faraday’s Law of Induction provides the connection between Lenz’s Law and electromagnetic induction. In accordance with Faraday’s Law:

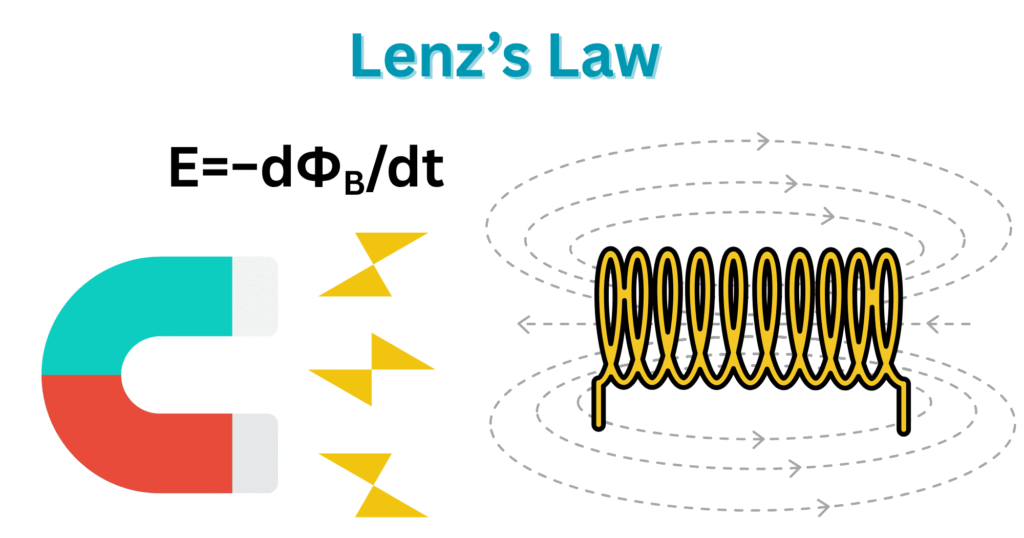

E=−dΦB/dt [Equation 1]
In this formula, ΦB is the magnetic flux, and E is the EMF induced. Lenz’s Law is denoted by the negative sign in Faraday’s equation, which shows that the generated EMF and current evolve in an opposite direction to the change in magnetic flux.
To reach it clearly, we can say, as the magnetic field via a wire loop increases, the induced current flows in a direction that opposes the magnetic field. On the other hand, the induced current ensures that the original magnetic flux remains as it is.
Understanding the Formula Behind Lenz’s Law
Below is an equation of EMF and the change in magnetic flux, combining both Lenz’s law and Faraday’s Law.
E= −dΦB/dt [Equation 1]
Where:
- E is the electromotive force (EMF) produced, that is measured in volts.
- ΦB denotes the magnetic flux in webers (Wb).
- dΦB/dt is the rate of change of flux with respect to time.
- Magnetic Flux (ΦB)
Considering both the strength and magnitude of a magnetic field, magnetic flux provides a measurement of the total magnetic field entering a closed loop. It is calculated as:
ΦB=∫B⋅dA [Equation 2]
Where:
- B is the magnetic field strength vector.
- dA is a differential area which is perpendicular to the surface.
For uniform magnetic fields and smooth surfaces, the expression reduces to the following:
ΦB=B⋅A⋅cosθ [Equation 3]
Where:
- A is the area of the loop.
- θ being the angle formed by the magnetic field and the normal to the surface.
- Induced EMF and Current
According to Ohm’s Law:
E=I⋅R [Equation 4]
Where:
- I is the induced current.
- R is the resistance of the conductor.
Combining with Faraday’s Law:
I= −1/R⋅dΦB/dt [Equation 5]
The ‘–‘sign here shows that the direction of current flows is opposite to the change in flux.
- Examples of the Formula in Action
- Moving a Magnet Towards a Coil:
- As a magnet moves towards a coil, the magnetic flux across the coil increases.
- According to Lenz’s Law the induced current flows in a direction that resists the incoming magnetic flux by producing a magnetic field which opposes the growing flux.
- Sliding a Conductor in a Magnetic Field:
- The change in flux that occurs when a conductor passes through a magnetic field causes a current to flow.
- The basic idea behind Lenz’s Law is that resistance is provided by the direction of the current, which is such that it opposes the flow of the rising flux.
Real-World Examples of Lenz’s Law in Action
Lenz’s Law is not just a theoretical law. It has been applied in various everyday circumstances, showing its importance in daily life.
- Electromagnetic Braking in Trains and Roller Coasters
Lenz’s Law is used in electromagnetic brakes to reduce the speed of moving cars. On the train or roller coaster, large magnets are placed nearer to the conducting objects.
- As the vehicle moves, current is induced. Also the magnets produce a varying magnetic field due to the conductors.
- The induced currents repel the initial flux produced, producing a stopping force.
In comparison to ordinary braking systems, this braking method is efficient, smooth, and reduces any harm which might occur.
- Induction Cooktops
The cooking pans are heated by electromagnetic induction on induction cooktops. The method includes:
- A coil below the cooktop surface carries a high-frequency alternating current, creating a magnetic field that changes quickly.
- A current loop called Eddy currents are created in the cookware when a metallic pot or pan is set on top of a varying magnetic field.
- Thus generated currents produce heat due to the resistance of the material and cooking the food successfully.
- Generators and Power Plants
Generators are based on electromagnetic induction to convert mechanical energy into electrical energy.
- A wire coil rotates in a magnetic field. As a result the magnetic flux passing through the coil changes.
- According to Lenz’s Law, an EMF is induced in the coil, producing an electric current that opposes the rotational motion of the coil.
- The energy input must overcome this opposition, resulting in the conversion of mechanical work into electrical energy.
This principle is applied typically in power plants, where turbines are rotated by various energy sources (e.g., wind, water, steam) to generate electricity. (Read about Nuclear Reactors)
- Transformers
Transformers heavily rely on electromagnetic induction to transfer electrical energy between the circuits:
- The primary and secondary coils of a transformer are wound together around a single core.
- A changing magnetic flux is produced as a result of the changing current in the primary coil of the core. This produces an EMF in the secondary coil.
- The voltage is adjusted by using suitable transformers (step-up and step-down power supply).
Applications of Lenz’s Law in Everyday Technology
Lenz’s Law is also used in various technologies that are applied in advanced science and engineering.
- Magnetic Levitation Trains
Maglev trains move efficiently without friction by levitating above the tracks using magnetic forces.
- Powerful magnets create strong magnetic fields.
- As the train moves, changing magnetic fields gives currents in the conductive tracks, creating opposing magnetic fields which uplift and balance the train.
- This application of Lenz’s Law provides efficient and smooth transportation at higher speeds, without physical contact with the tracks.
- Wireless Charging Devices
Wireless chargers and other devices also function on the principle of electromagnetic induction:
- A transmitting coil in the charger produces a changing magnetic field.
- A receiving coil in the device reads the changing field and induces a current, which charges the battery.
- This wireless form of energy transfer is both simple and efficient, as it relies on Lenz’s Law to ensure the direction of current and transfer of energy.
- Electric Motors
Electric motors convert electrical energy into mechanical energy using Lenz’s law of electromagnetism.
- When electric current travels through coils in a magnetic field, magnetic forces act on them, resulting in torque.
- According to Lenz’s Law, the induced currents create magnetic fields opposing the initial change, controlling the motor’s speed and providing efficient energy conversion.
- Electric motors are widely used to operate everything from home appliances to industrial equipment and electric vehicles.
- Magnetic Dampers
- When a vibrating object passes through a magnetic field, it induces current that generates opposing forces as per Lenz’s Law.
- These opposing forces lose energy, slowing the motion and minimizing vibrations.
- Magnetic dampers are used in various equipment such as musical instruments and measurement systems to improve their performance and stability.
The Role of Lenz’s Law in Energy Conservation
Lenz’s Law is essential for maintaining energy conservation in electromagnetic systems. As provided that the induced currents resist changes in magnetic flux, it limits the amount of energy that can be obtained or transferred, preventing continuous motion, which guarantees that energy transformation, obeys of conservation of energy.
- Opposition to Motion
When a conductor moves within a magnetic field, it induces current that creates magnetic fields limiting the motion. This limitation requires the use of an external force to maintain movement and successfully converting mechanical energy into electrical energy keeping in account the energy conservation.
- Efficiency in Energy Transfer
In devices like transformers and generators, Lenz’s Law ensures that energy is efficiently transferred between circuits. By limiting unwanted changes, it minimizes energy losses and improves the overall efficiency of the conversion of mechanical energy into electrical energy.
- Preventing Perpetual Motion
Lenz’s Law prevents the possibility of perpetual motion machines making sure that any induced current produces forces opposing the initial energy provided. This prevention requires continuous energy supply to sustain motion thus lying with the fundamental principles of thermodynamics and energy conservation.
Experiments Demonstrating Lenz’s Law
Practical experiments help to simplify and visualize the ideas of Lenz’s Law. The following are some experiments showing Lenz’s law.
- A Magnet dropped Through a Copper Tube
Materials:
- A strong magnet
- A copper tube
Procedure:
- Hold the copper tube vertically.
- Release the magnet in the tube.
- Observe the magnet’s fall.
Result:
The magnet falls through the copper tube more slowly than it would do during free fall.
Conclusion:
As the magnet falls down, eddy currents are produced by the varying flux which passes through the walls of the tube. According to Lenz’s Law, these currents produce a magnetic field that resists the increasing flux, resulting in a force that slows its fall.
- Placing a Magnet with a Galvanometer Close to a Coil
Materials:
- A coil of wire connected to a galvanometer
- A bar magnet
Procedure:
- Connect a galvanometer to a coil of wire.
- After moving the bar magnet in the direction of the coil, check the galvanometer.
- Again observe the galvanometer after removing the magnet from the coil.
- Move the magnet faster in the beginning and then slowly. Note down the differences.
Result:
- The galvanometer deflects in one direction when the magnet is placed closer to the coil.
- The galvanometer deflects in the opposite direction as the magnet is taken away.
- Faster movements result in larger deflections compared to slower movements.
Conclusion:
According to Lenz’s Law, the motion of the magnet affects the magnetic flux across the coil, resulting in an EMF and current. Greater movements cause a greater quantity of flux change, which induces larger currents.
- Induction Heating Demonstration
Materials:
- Induction heating coil
- Metal object (e.g., steel spoon)
Procedure:
- Put the object on the coil.
- Turn on the induction heater.
- Observe the heating of the metal object
Result:
The metal object heats quickly without a direct touch to a heat source.
Conclusion:
Eddy currents come in action due to the changing flux in the coil. According to Lenz’s Law, these currents generate opposite magnetic fields, causing the metal to heat due to its electrical resistance.
Common Misconceptions about Lenz’s Law
There are various misconceptions about Lenz’s Law. Clarifying these misunderstandings is very important to understand the domain of electromagnetism.
- Misconceptions:
- Lenz’s Law determines the magnitude of the induced EMF.
- Lenz’s Law violates energy conservation
- Lenz’s Law only applies to permanent magnets
- The current produced is always in the same direction.
- Lenz’s Law is only relevant in theoretical physics
- Clarification:
- The direction of the produced EMF and current is determined by Lenz’s Law and their magnitude is determined according to Faraday’s Law.
- Lenz’s Law supports energy conservation. It provides that energy in electromagnetic systems is properly converted where the induced current opposes the varying magnetic flux and limits the energy production without giving the input.
- Lenz’s Law is applicable in every situation where there is a change in magnetic flux and not only applies to the permanent magnets. In all cases of electromagnetism, it gives the direction of induced currents.
- The change in magnetic flux determines the direction of induced currents. Therefore, the change in direction is observed depending upon the situation.
- Lenz’s Law is highly useful above theoretical research as it has many practical applications involving household appliances to modern technology, such as electric generators, transformers, induction cooktops, and electromagnetic braking systems.
Conclusion
Lenz’s Law describes the basic idea of electromagnetic induction and implies that the conservation of energy in electromagnetic systems is maintained. In addition, Lenz’s Law supports a wide range of technical applications that contribute to modern life by providing the direction of induced currents to oppose changes in magnetic flux.
Lenz’s Law has been common to everything from the wireless chargers that power our smartphones to the braking systems found in high-speed trains. Its importance is realized in both scientific research and real-world changes. The daily works are made simpler as well as advanced technologies are being constructed improving their efficiency and leading to greater dependence on electromagnetic phenomena.
Furthermore, Lenz’s Law is a foundation in the curriculum of physics and engineering. It encourages further developments in the field of scientific discovery through experiments. However the common misunderstandings are also being clarified.
Moreover, understanding Lenz’s Law allows us to use electromagnetic principles to develop effective and durable technology and opening a track to a future in which innovation and energy blend together.
Reference
Wood, L. T., Rottmann, R. M., & Barrera, R. (2004). Faraday’s law, Lenz’s law, and conservation of energy. American Journal of Physics, 72(3), 376-380.
Tombe, F. D. (2009). Lenz’s Law.
Duffy, A. (2018). A pictorial approach to Lenz’s law. The Physics Teacher, 56(4), 224-225.
https://byjus.com/physics/lenzs-law/
Lenz’s Law
Boháč, R., Kopecký, V., Primas, J., Malík, M., & Slavík, L. (2024). Educational device for demonstrating Lenz’s law. Physics Education, 60(1), 015012.
Sanchez, C. W., & Loverude, M. E. (2012, February). Further investigation of examining students understanding of Lenz’s law and Faraday’s law. In AIP conference proceedings (Vol. 1413, No. 1, pp. 335-338). American Institute of Physics.
