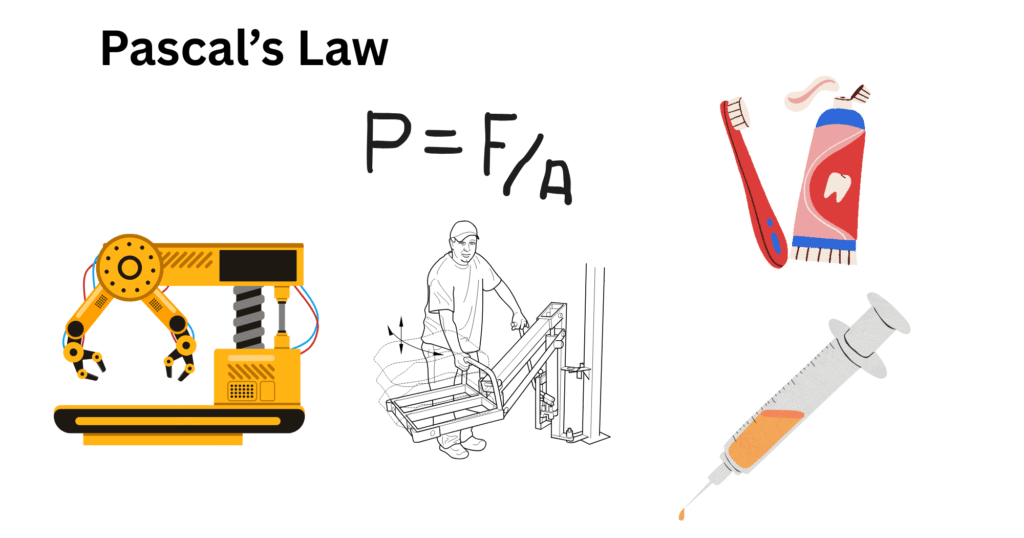

Definition of Pascal’s Law in Fluid Mechanics
Pascal’s Law goes closer to the behavior of fluids when packed and finds the even pressure flow even acted at one small point. This pressure acts fair within the fluid’s volume rather than a sudden disturbance or an immediate transition. Pascal’s Law inserts the philosophy of symmetry and equilibrium in fluid dynamics. It describes beautifully, how molecules surpass their pressure on surrounding molecules cordially.
Pascal’s law proves that a modest force equally echoes to every direction of fluid, if it is completely restricted. Mathematical explanation of the law includes force and area and relates them with the pressure as,
P = F / A [Equation1]
Where:
- P = Pressure
- F = Force applied
- A = Area of the domain enclosing force
This equation captures the beautiful emotion of small force spreading over the molecules in a uniform cordial nature.
Pascal’s Law Formula and Units Explained (P = F ÷ A)
The easy though impressive form of equation [1] takes less time to understand, yet its strength has surprised mankind. The SI unit is counted in Pascal. The stuff of [1] possesses unique measures (force = Newton, area = square meter) which combinedly result in Pascal.
Likewise, if one Newton of force is assigned to any sealed area of one square meter, the resultant pressure will be of one Pascal.
Simple calculation of pressure for a 400 N force on 20 m^2 area is:
# F = 400 N
A = 20 m^2
Now, P = F/A = 400/20 = 20 Pa.
This means that the pressure exerted throughout the confined fluid is 20 pascals, demonstrating how a relatively small force distributed over a large area results in a low pressure.
Blaise Pascal’s Discovery and Historical Context
Through acute research and observation, the genius French mathematician and physicist Blaise Pascal changed our understanding of the motion of fluids in the second half of the 17th century. Pascal’s barrel is that experiment supposedly carried out by Blaise Pascal to observe the pressure effects on fluids. It is rumoured that Pascal pushed a long vertical tube into a sealed container and pumped water inside. This bursted the container or the barrel because of the increased pressure inside. The experiment is probably a tale credited to him by 19th-century French authors, who call the experiment as crève-tonneau (“barrel-buster”). However, this dramatic display reveals that pressure doesn’t depend on volume in fluids but depends on their depth and the force exerted.
Pascal was captivated by how fluid dynamics refused some of the prevailing physics norms of the time. His results boosted physics not only as a physics theory but also having logical reasoning on the nature of forces and equilibrium in physical systems. His theory evolved when the whole century was under Aristotle’s belief about masses and forces. Pascal’s law created a huge thunder on the mindsets which was also proven true.
How Pressure Transmits Equally in Confined Fluids
In a tight enclosed fluid, pressure is more like a perfectly conduction band, where each particle reacts to the force applied without any hesitation. When the force is applied to one part it is no longer localized to a point Instead. The molecules inside the configuration spread the change equally in every way, without concerning the fluid dimension or the location of the applied force. This occurs because the loosely arranged fluid molecules are constantly moving, reacting and striking with one another.
These strikes also happen in a chain which let the force circulate, uninterrupted throughout the fluid. As fluids take shape according to the area they occupy, the supply of force becomes even to the whole volume. They create a force balance by this movement. The applied pressure is also not confined to one direction and gets pushed perpendicularly to every corner where the fluid molecules contact. This regular distribution advantages the hydraulic systems. The outcomings of the fluid from another end thus can be predicted by pressing one end.
Key Equations Deriving Force Multiplication
Pascal’s law is like a ratio and proportion rule which can be solved on the basis of the ratio of force and the area. Let us consider two tubes connected to each other having two pistons..
Let:
- A1 = Area of the smaller piston
- F1 = Force applied to the smaller piston
- A2 = Area of the larger piston
- F2 = Force exerted by the larger piston
Now fill the tubes with water and use Pascal’s Law on both sides. We see,
F1 / A1 = F2 / A2
From this, we can derive:
F2 = (A2 / A1) × F1 [Equation 2]
Hence this equation clearly shows how a small starting force can multiply the outcoming pressure by spreading itself to the larger area and perform any heavier tasks easily.
Applications of Pascal’s Law
Some important applications of Pascal’s law are given below:
- Hydraulic Rescue Tools
During rescue missions, emergency teams employ hydraulic equipment to exert high forces with proficiency to cut or break down vehicles. - Hydraulic Dams and Spillway Gates
Some reservoirs and dams utilize hydraulic valves to open and close bulky gates that control water flow. - Dental Chairs
Current orthodontic chairs use hydraulic systems which carefully handle the movement of patients in chairs by utilizing even pressure and do not hamper their positioning. - Hydraulic Torque Wrenches
These are used in heavyweight fields like as fuel refineries to apply incredibly high torque to tighten the screw or loosen it. - Pressurized Ink Systems in Industrial Printing
Some printers of high speeds use Pascal’s law to evenly distribute the ink, with Pascal’s Law. It helps to achieve fast and efficient printing and maintain accuracy. - Hydraulic Stage Lifts in Theaters
The performing platforms of some theatres are lifted up or down by using hydraulics which helps in quick stage set up. - Robotic Surgery Tools
In a not so sensitive robotic mechanism, the body of the robot can be mobilized by using hydraulic pressure to control the movement and generate fine motion.
Each of the above examples is based on the fact that the pressure exertion to a sealed fluid causes even pressure distribution.
Hydraulic Press and Lift: Classic Applications
The hydraulic press being invented by Joseph Bramah in the 18th century is likely the most renowned use of Pascal’s Law. It operates relying on Pascal’s Law consisting of small and large cylinders connected by a pipe and packed with hydraulic fluid. A tiny force in the small tank generates pressure, which is transferred through the fluid. The same pressure acts on the larger cylinder, giving a greater output force due to the larger surface area. All the heavy metal applications like designing the metal sheets for fitting vehicle parts, recycling of vehicles, oil and juice extractions, medicine synthesis etc. apply hydraulic press.
Hydraulic lift is also the most used application from the time of its discovery comprising the principle of Pascal’s law for pressure distribution. Same as hydraulic press it uses two cylindrical pistons to lift a heavy object by applying pressure to the smaller piston and magnifying its effects on the other piston. This process efficiently carries tons of weights. All the load lifting areas like automobile workshops, freight elevators, excavators etc. are the applications of hydraulic lifts.
Automotive Brake Systems Using Pascal’s Principle
Modern braking systems of vehicles are based on Pascal’s Law. They also comprise smaller and larger pistons. When the driver pulls the brake pedal, a minor force is applied to the smaller piston that spreads its pressure evenly to the greater piston. This pressure is circulated through braking lines to the brake pedals to stop the vehicle.
This helps to apply uniform brakes rather than a sudden stop which safeguards the journey.
Everyday Examples of Pascal’s Law at Work
- Automobile service and repairs: The damaged parts of heavy vehicles are repaired and get the vehicle serviced by using hydraulic machines.
- Cream tube: A beauty purpose cream, moisturiser, cleanser and all tubed fluid stuff comes out of the tube from the nozzle on squeezing at the bottom.
- Sprayer: Many disinfectants, perfumes, cleaning liquids, hand washes, which we tackle daily, utilise Pascal’s law to get released from their vessel.
These examples show how we are daily influenced by Pascal’s law from household chores to advanced lifting tasks.
Variables That Influence Pressure Transmission
Pressure in Pascal’s law is also affected by sudden factors which are given below:
- Fluid type: Low viscous and incompressible fluids like hydraulic oil or water are preferred in hydraulic machines as they do not absorb pressure and can smoothly run the device.
- Temperature: High temperature on fluids can reduce their consistency and lower the force transmission. Similarly, low temperature can also thicken the fluid and may give a slow response to the applied pressure.
- Friction of piston: Friction present on piston can reduce the mobility of fluids in that rough surface. Frictionless pistons can smoothly transmit pressure on fluids.
- Seal integrity: Slight error in the packaging or sealing of fluids can also cause internal damages and failure in pressure distribution.
- System design: The layout, surface area or the passage region of fluid in that confined system can also cause a diminution or increment in the pressure flow.
- Presence of air bubbles: If the enclosed system is not airtight and cavities are present, the efficiency can be reduced or the system may damage.
- Enclosure’s Plasticity: The movable nature of the vessel or container can also trap the fluid and absorb pressure.
Any confined systems from a food packaging to a hydraulic machine must be aware of these lags before designing the system.
Pascal’s Law vs. Hydrostatic Pressure Differences
Pascal’s law and Hydrostatic pressure both are at opposite sides of a road as one deals with the closed system and another with the open system. Pascal’s law strictly states confined without a leakage fluid system while Hydrostatics deals with the static fluid in an open system.
Pressure spreads equally in all directions in Pascal’s law and can be calculated by the basic pressure formula, P = F/A. On the other hand fluid pressure is affected by density or depth of fluid with no constant flow in Hydrostatics (P = ρgh). The pressure is exerted at a point in Pascal’s law but in Hydrostatics, the mass of fluid itself generates the pressure.
In summary, Pascal’s law deals with the pressure where force is externally supplied while Hydrostatic pressure is a natural pressure gain due to the own weight of the fluid at rest position.
Simple Experiments Demonstrating Pascal’s Principle
- Water Filling: Pascal’s law can be easily detected by filling water to a tube, plastic or a balloon. The filler should be tightly tied and pressed at any point. We can see the pressure transmitting evenly.
- Bottle Setup: Combine two plastic bottles with a tube or a pipe. Fill them with water. Now close them with a cap tightly. Create a small hole on one of the bottle’s caps and blow with the straw. Blowing air on one bottle causes water on another bottle to move.
- Bottle Filling: Fill a plastic bottle with water and tighten the lid. Create holes at different points of the cap. Now, applying force on the bottle leads water to jet-out.
Common Misconceptions About Pascal’s Law Clarified
There are also some complexities of this simple law if not understood well. Some confusions are given below:
- Pressure only acts downward: Pressure direction is not mentioned and can flow randomly anywhere.
- Fluids must be moving: Pascal law is a strictly determined law for static fluids.
- Only water follows this law: All fluids which are incompressible proves the law when placed air tight.,
- Large pistons add energy: There is no energy addition. Larger area multiplies the force and makes the task easier with even pressure distribution.
A teacher, tutor or an information personnel must guide properly to overcome these confusions.
Summary of Pascal’s Law and Its Engineering Impact
Pascal’s Law is an iconic law in fluid mechanics that raised the standard of technologies. From a balloon to hydraulic designs all respect the law and transmit pressure fairly. Similarly, engineers are able to design such systems on this basis of force multiplication that perform tasks on gigantic loads. Whenever the context of pressure arises in packed fluids, Pascal’s law pops out whether in physics or the medical field.
Some common mishaps can lead to faulty results in the circulation of the law. This can be uprooted by thorough study and guiding. Since we are in the luxurious era of machinery, we will always be surrounded by Pascal’s law to continue our luxury.
References
Rong, R. E. N., Zhen, W. A. N. G., Guang-hui, F. U., Chang-ning, S. U. N., Li-jun, Y. U. A. N., & Tie-sheng, C. A. O. (2018). General Pascal’s Law: A Possible Basic Hydrostatic Law. CT Theory and Applications, 27(2), 137-143.
Kuehn, K. (2014). Pascal’s Principle. In A Student’s Guide Through the Great Physics Texts: Volume II: Space, Time and Motion (pp. 177-188). New York, NY: Springer New York.
